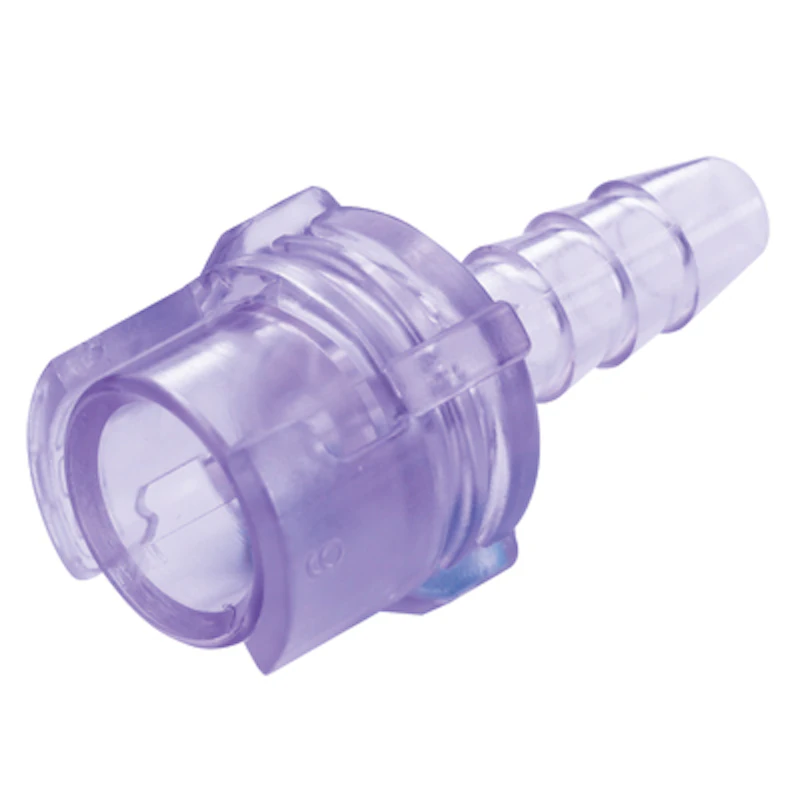

1/16" In-line Hose Barb SMC Series Polycarbonate Coupling Body - Straight Thru (Insert Sold Separately)

1/16" In-line Hose Barb SMC Series Polycarbonate Coupling Body - Straight Thru (Insert Sold Separately)

Item 65248
Out of Stock (On Order)
4.11/Each

These items are temporarily out of stock. Placing an order for one of these items will put you in line to receive your shipment on a first-come, first-served basis. In most cases, you may choose to accept partial shipments during checkout. You may also sign up below to be notified when it is back in stock.

Buy in Quantity & Save!

5% off at 25+3.9045/Each
10% off at 50+3.699/Each
15% off at 150+3.4935/Each

Overview

The SMC is a twist-to-connect coupling that provides a reliable and more secure alternative to luer-type connections. It also allows for the tubing to rotate freely when connected. This important feature prevents both kinked tubing and accidental disconnection during use.

  • Purple-tinted polycarbonate
  • Buna-N O-rings
  • Twist-to-connect prevents accidental disconnects
  • Dimensions: 0.90" L x 0.48" H
  • Can be gamma sterilized up to 50 kGy irradiation
  • Vacuum rated: 100 psi, 6.9 bar
  • Temperature range: -40°F to 250°F (-40°C to 121°C)
  • Polycarbonate meets USP Class VI & ADCF requirements
  • Buna-N meets USP Class V & ADCF requirements
  • Body & insert sold separately

Item Information

Item Number: 65248
Catalog Page Number: P-310
Manufacturer: CPC™
Manufacturer Part #: SMF0191
Country of Origin: USA

Tech Specs

Size: 1/16"
Configuration: Hose Barb Quick Disconnect
Material: Polycarbonate
Weight: 0.002 lbs
