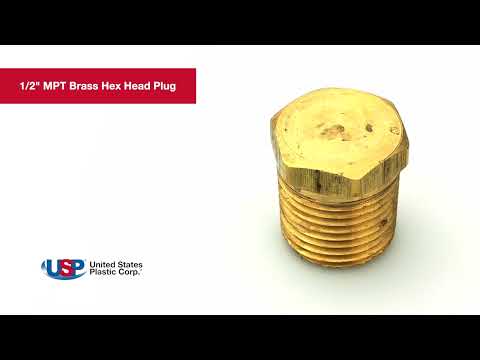

360 Video
360 Video

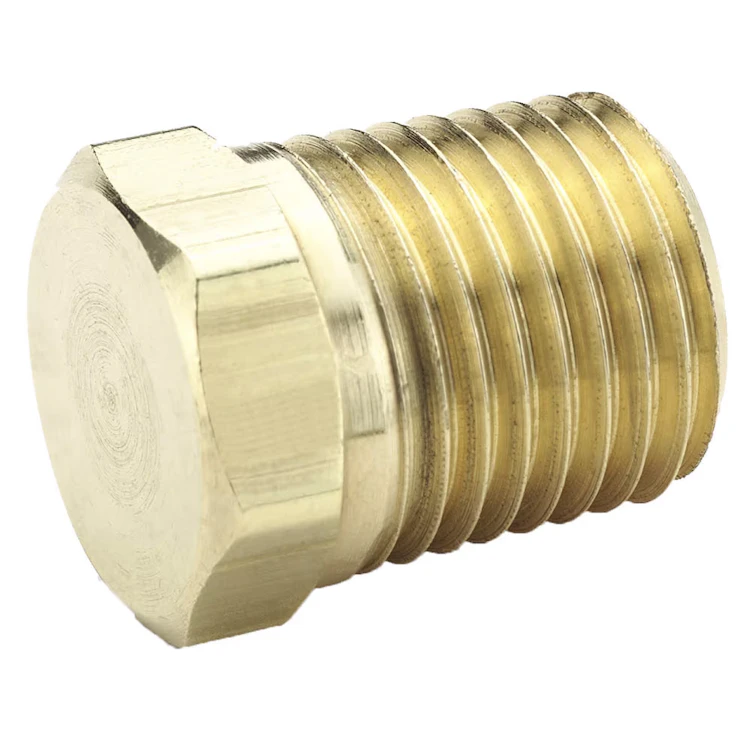

1/2" MPT Brass Hex Head Plug
1/2" MPT Brass Hex Head Plug

1/2" MPT Brass Hex Head Plug

Item 61890
5.97/Each

Buy in Quantity & Save!

5% off at 10+5.6715/Each
10% off at 20+5.373/Each
15% off at 60+5.0745/Each

Overview

Pipe fittings are compatible with copper and brass tubing and iron pipe. Applications for these fittings include airlines, water lines, and cooling lines. Straight fittings assembly instructions: 1. Tighten the external thread into the internal thread. 2. Tighten an additional 2 revolutions with a wrench up to 1/2" male pipe thread. Above 1/2", 1-1/2 to 2-1/2 revolutions. Elbow or Tee fittings assembly instructions: 1. Tighten the external thread into the internal thread. 2. Tighten an additional 1 to 1-1/2 revolutions with a wrench. 3. Tighten fitting, clockwise, to align with Tubing (never counterclockwise). Note: To minimize the possibility of a leaking threaded joint after assembling male to female pipe threads, neither end should be backed out (loosened) once the assembly has been made.

  • All brass construction
  • Pressure rating: up to 1,000 psi
  • Temperature range: -65°F to 250°F
  • Meet functional requirements of SAE J530 & SAE J531
  • Threads are made to Dryseal standards
  • Dimensions: 0.97" long
  • Hex size: 7/8"

Videos

360 Video
360 Video

Item Information

Item Number: 61890
Catalog Page Number: Internet Only
Manufacturer: Parker Hannifin
Manufacturer Part #: 218P-8
Country of Origin: USA

Tech Specs

Size: 1/2"
Configuration: MNPT Plug
Material: Brass
Weight: 0.095 lbs
