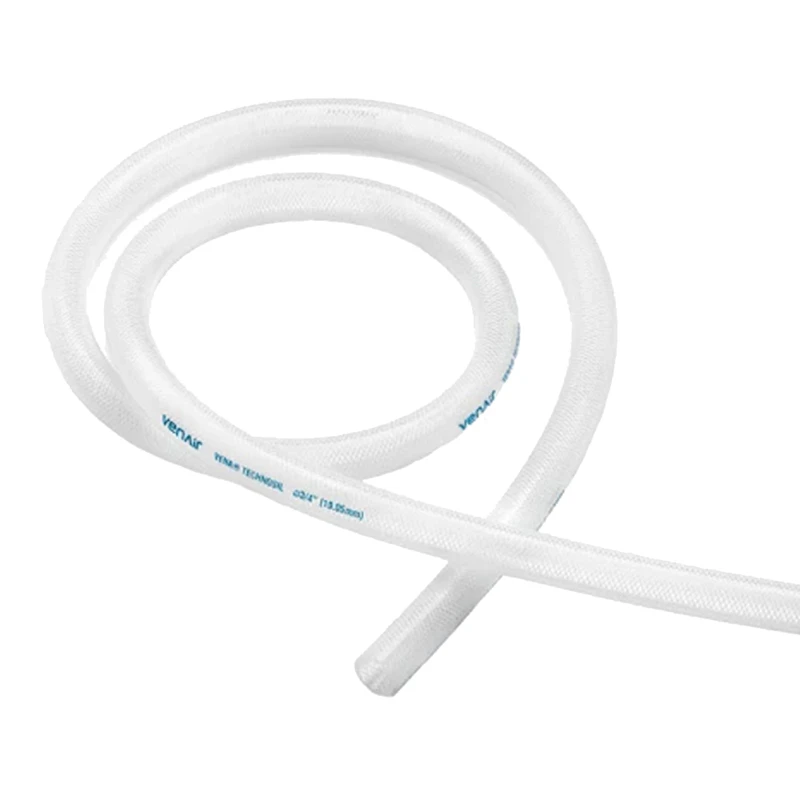

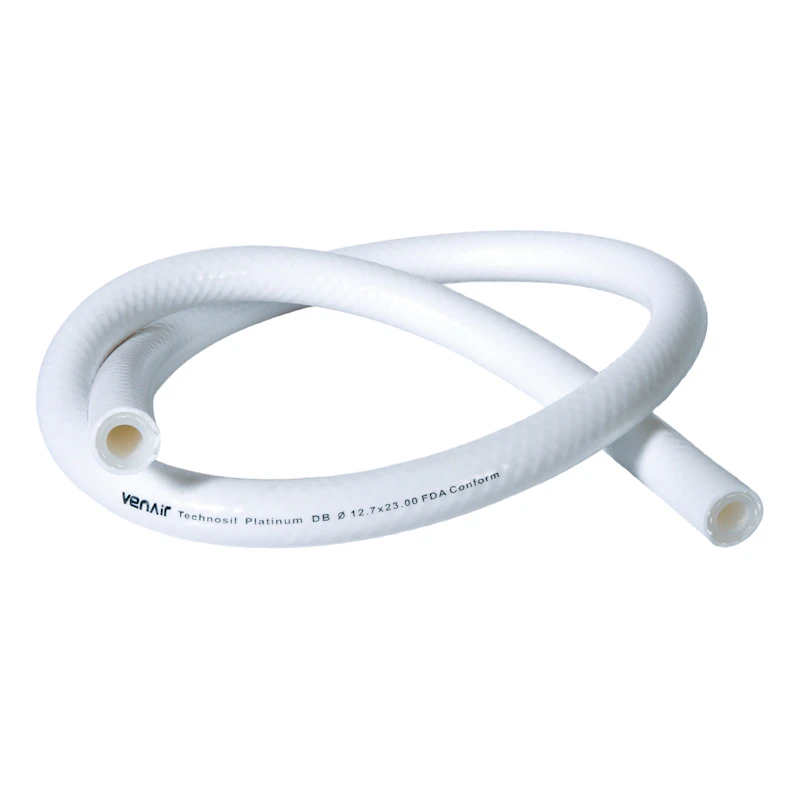

Vena® TECHNOSIL DB Series Dual Braid-Reinforced Platinum-Cured Silicone Hose

Vena® TECHNOSIL DB Series Dual Braid-Reinforced Platinum-Cured Silicone Hose

Vena® TECHNOSIL DB is a platinum-cured silicone hose reinforced with double-braided polyester. Engineered for high-pressure filling processes and low-vacuum service, this hose is recommended for transporting liquid and semi-liquid products in the food, cosmetic, chemical, and pharmaceutical industries. The hose features a smooth, translucent inner layer and a smooth, white outer layer, while the double reinforcement provides strength and dependable performance. Always observe specified pressure and bend-radius limits, verify chemical compatibility, and inspect the hose regularly. Not recommended for abrasive particles.

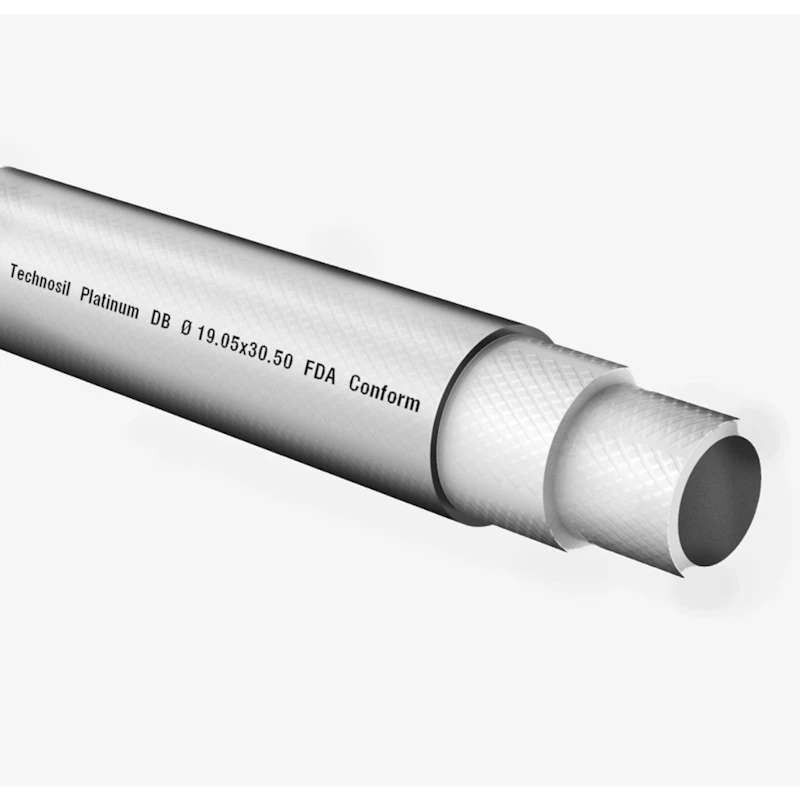

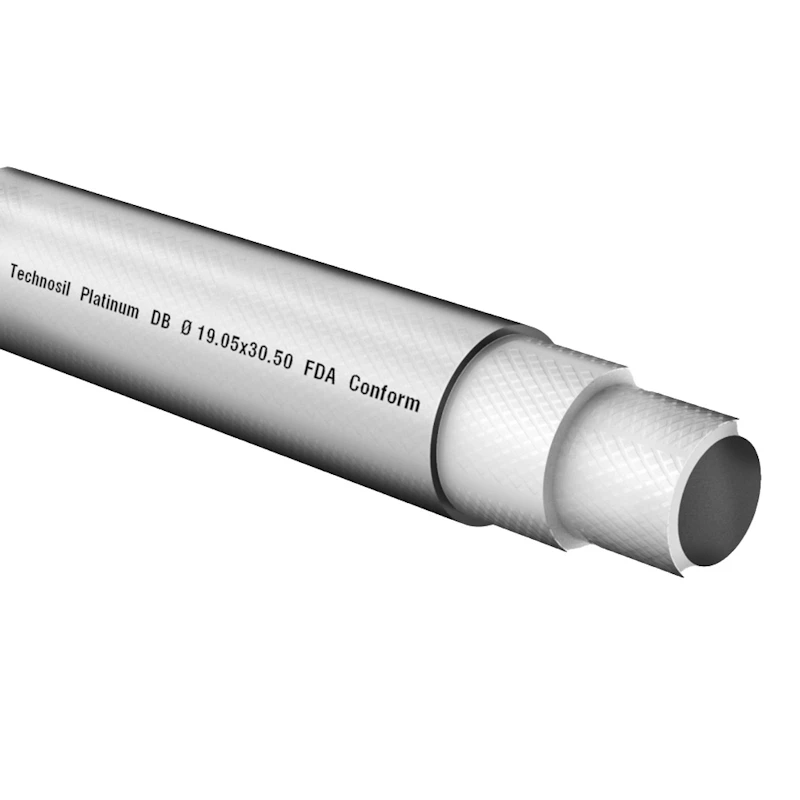

Platinum-cured VMQ silicone hose with double-braided polyester reinforcement
Designed for high-pressure & low-vacuum service
Smooth inner & outer layer; Translucent inner layer & white outer layer
Odorless, tasteless & completely non-toxic
Temperature range: -75°F to 356°F (-60°C to 180°C) continuous; Up to 392°F (200°C) intermittent
USP Class VI compliant materials; Meets 3-A Sanitary Standard 62-02
FDA-compliant resin/materials; RoHS-compliant silicone material
Priced per roll; sold in 20m rolls - 20m standard length (20m=65.6', approximately)

Item #	Description	Catalog Pg.	Price
Item 95828	1/4" ID x 0.63" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 1034.89/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	1034.89/20m Roll Drop Ship
Item 95829	5/16" ID x 0.71" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 1211.97/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	1211.97/20m Roll Drop Ship
Item 95830	3/8" ID x 0.80" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 1401.4/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	1401.4/20m Roll Drop Ship
Item 95831	1/2" ID x 0.90" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 1580.04/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	1580.04/20m Roll Drop Ship
Item 95832	3/4" ID x 1.21" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 2263.79/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	2263.79/20m Roll Drop Ship
Item 95833	1" ID x 1.46" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 2727.97/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	2727.97/20m Roll Drop Ship
Item 95834	1-1/4" ID x 1.81" OD Vena® TECHNOSIL DB Series White Dual Braid-Reinforced Platinum-Cured Silicone Hose 4037.14/20m Roll Drop Ship Save 5% when you buy 2+ Save 10% when you buy 4+ Save 15% when you buy 12+	P-252	4037.14/20m Roll Drop Ship

Note: Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
