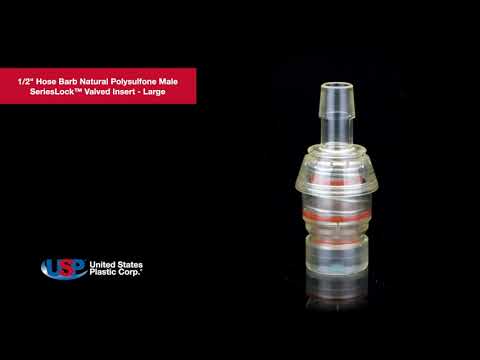

A unique aseptic Spring-Free Flow Path® quick-connect fitting allows a larger volume of fluid to pass through at lower line pressures. This optimized flow reduces restriction, turbidity, foaming, and bubbles. Recessed mating features protect contact surfaces and prolong the life of the O-rings helping to ensure a better seal. Polysulfone is autoclavable at 121°C for at least 30 minutes and at 134°C for at least 15 minutes followed by 15-30 minutes drying time. The audible click upon connection and the safety slide release are both features to help minimize accidental disconnects. Different body sizes are available to accommodate various connection sizes for hose barb adapters. Additional sizes, materials, flow paths, and end connections are available; contact us for a quote.
- Polysulfone (PS)
- Silicone O-ring & 302 stainless steel spring
- Spring-Free Flow Path® fittings – valved; Superior single-barb technology
- Lubricant: biocompatible & inert PFPE
- Slide button & main latch: CrystalVu™ PMP copolymer
- Spillage < 0.1cc per disconnect (large)
- Sterilization: EtO, Gamma & E-Beam
- Autoclavable
- Working pressure: vacuum to 90 psi, 6.9 bar
- Temperature range: -40°F to 282°F
