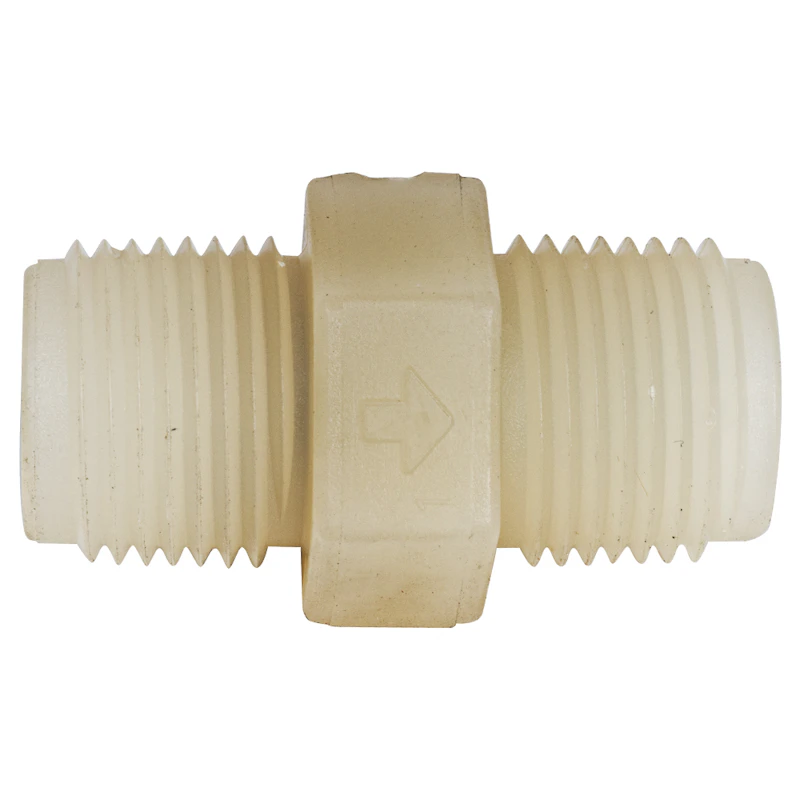

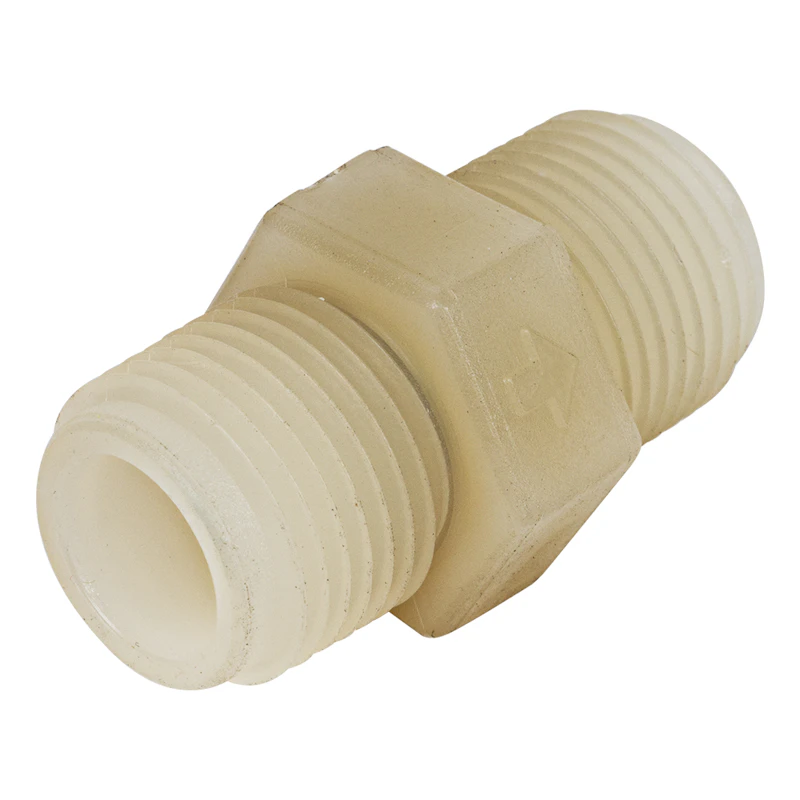

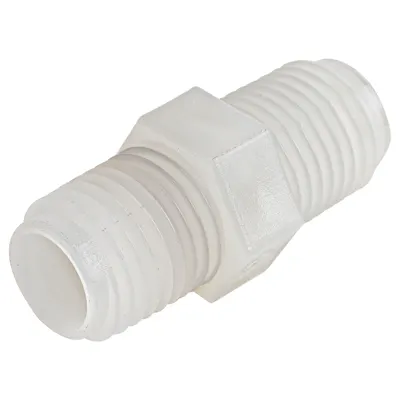

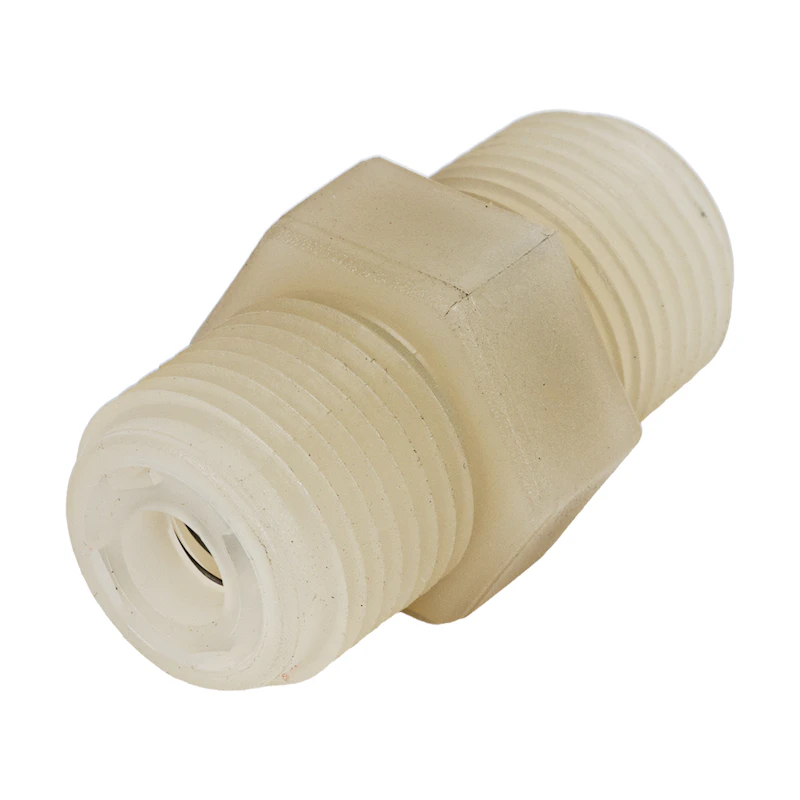

Jaco PVDF check valves are designed to provide reliable one-way flow control in fluid-handling systems. Featuring a precision spring-loaded ball design, these valves prevent backflow while maintaining low cracking pressure for efficient operation. The male NPT connections facilitate easy installation across a wide range of applications, including chemical processing, water treatment, and industrial systems. Each valve is 100% tested before shipment to ensure consistent, leak-free performance in demanding environments.
- PVDF body
- Viton™ O-ring
- 316 stainless steel ball & spring
- Spring-loaded design prevents backflow
- Zero leakage performance
- Dimensions: 1-1/2" L; Hex size: 13/16"
- Flow Dia.: 1/4"
- Cracking pressure: 1 to 2.5 psi
- Max. temperature: 180°F @ 220 psi
- FDA-compliant resin/materials; NSF/ANSI/CAN listed
