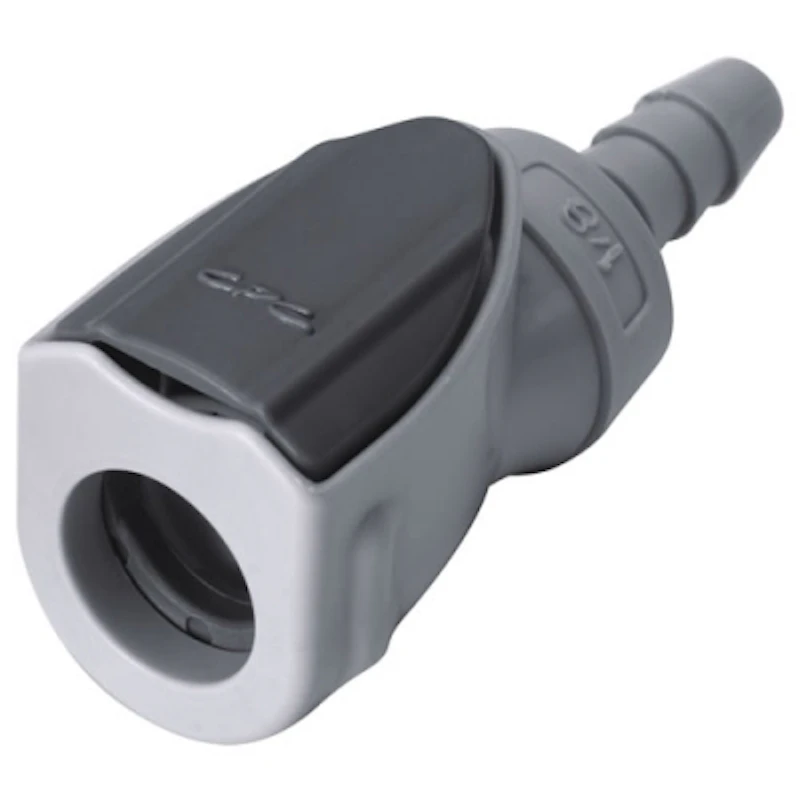

1/8" ID In-line Hose Barb NS1 Series Polypropylene Coupling Body (Insert Sold Separately)
1/8" ID In-line Hose Barb NS1 Series Polypropylene Coupling Body (Insert Sold Separately)
1/8" ID In-line Hose Barb NS1 Series Polypropylene Coupling Body (Insert Sold Separately)

1/8" ID In-line Hose Barb NS1 Series Polypropylene Coupling Body (Insert Sold Separately)

Item 65371
In Stock
27.1/Each

Buy in Quantity & Save!

5% off at 5+25.745/Each
10% off at 25+24.39/Each
15% off at 75+23.035/Each

Overview

NS1 Series couplings compact, closed-system design is packed full of features including non-spill shutoff valves that ensure drip-free disconnects and eliminate the need to purge air from the system. The smallest plastic non-spill coupling on the market, NS1 is perfect for applications with tubing from 1/8" and smaller. The ultra-low air inclusion minimizes contaminants and eliminates the need to purge air bubbles from the system. Chemically resistant materials provide reliable strength and performance in a range of applications.

  • Polypropylene main components & PEEK® thumb latch
  • 316 SS spring & EPDM O-rings
  • Non-spill, closed system for drip-free disconnect
  • Eliminate the need to purge air from the system
  • Allows tubing rotation, preventing kinks
  • Ergonomic, user-friendly interface
  • Enables secure, reliable connection & disconnection
  • Reliable strength & performance
  • Pressure rating: vacuum to 15 psi, 1.0 bar
  • Temperature range: 32°F to 120°F

Item Information

Item Number: 65371
Catalog Page Number: P-312
Manufacturer: CPC™
Manufacturer Part #: NS1D170212
Country of Origin: USA

Tech Specs

Material: Polypropylene
Size: 1/8"
Configuration: In-Line Hose Barb Quick Disconnect
Weight: 0.005 lbs
WARNING: Cancer - www.P65Warnings.ca.gov

Product testing for individual applications is recommended before use. U.S. Plastic Corp. cannot be held liable for individual application failures.
