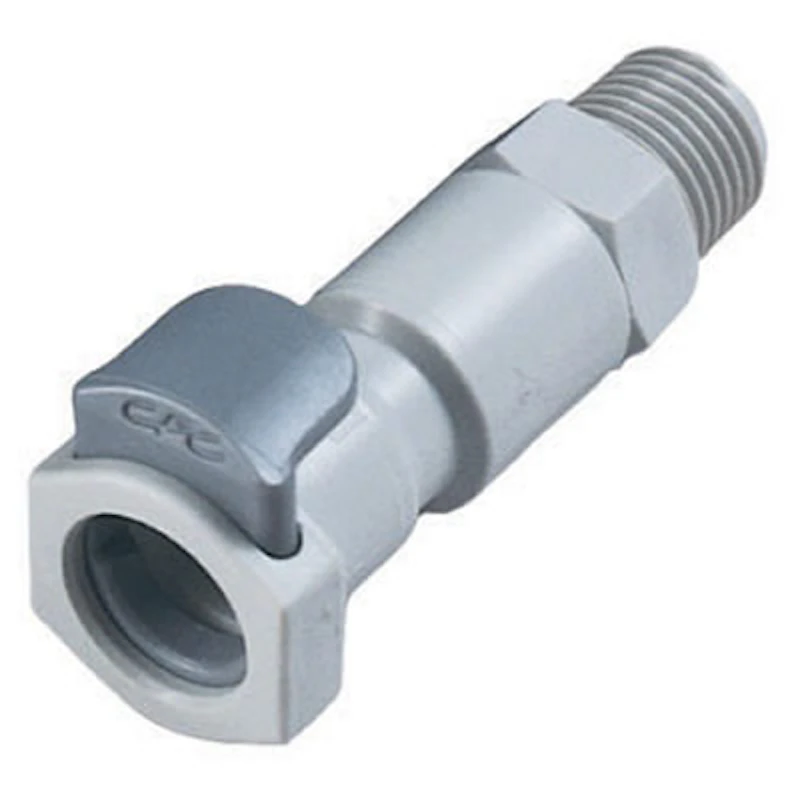

3/8" MNPT EFC Series Pipe Thread Body - Shutoff (Insert Sold Separately)

Item #: 60652
In Stock
$12.65/Each

Buy in Quantity & Save!

10-19$12.02Save 5%
20-59$11.39Save 10%
60+$10.75Save 15%

Overview

The 9/32" flow EFC12 Series couplings feature a high-efficiency valve-design that provides a greater flow capacity than any other coupling its size. The chemical resistant polypropylene material makes it perfect for harsh environments. Applications: Filling and drain lines, chemical dispensing, and peristaltic pump lines.

  • Polypropylene main components, valve & thumb latch
  • 316 SS valve spring & 302 SS external spring; EPDM O-rings & panel mount gaskets
  • Ideal for harsh environments
  • Bulkhead panel mount option available
  • More flow than PLC Series in a compact size
  • Plastic thumb latch with fewer moving parts
  • Mates with most APC couplings
  • Pressure rating: vacuum to 105 psi, 7.2 bar
  • Temperature range: 32°F to 160°F (0°C to 71°C)
  • Body & insert sold separately

Item Information

Item Number:60652
Catalog Page Number:P-223
Manufacturer:CPC™
Manufacturer Part #:EFCD10612
